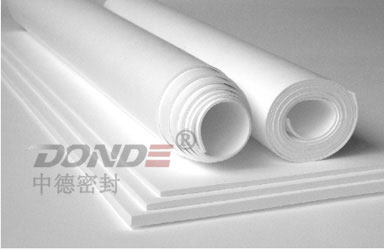

Expanded PTFE Sheet

Item No.:ZD-GS1621

Description:ZD-GS1621 Expanded PTFE sheet is a universal sheet gasket material for most services. Seals rough and irregular surfaces.  Made from biaxial oriented expanded PTFE sheeting that is laminated to the required thickness. Our EPTFE gasket sheet is manufactured by expanding 100% virgin PTFE using a proprietary process that produces a uniform and highly fibrillated microstructure with equal tensile strength in all directions. The resulting product exhibits characteristics significantly different than conventional PTFE sheet. EPTFE  is much softer and more flexible than regular PTFE sheet and thus conforms easily to irregular and rough surfaces. In addition, the material is easier to compress and minimizes creep and cold flow.

APPLICATION of ZD-GS1621
ZD-GS1621 Expanded PTFE sheet is an all purpose gasket sheet that can replace all other types of PTFE sheet. It will seal all aggressive chemicals over the entire 0-14 pH range except for molten alkali metals and elemental fluorine. Made from 100% virgin PTFE, Our EPTFE  not only resists chemical attack, but it will not contaminate or discolor end products.

Main Specification:

PH

0-14

Temperature

-100~+200

Recovery

15%

Compressibility

60%

Creep

14%

Compressure

=<2.5

Tensile Strength

15MPa

Leakage Rate

<1/100cm3

Color

白色

Density

0.7-0.8g/cm3

ASTM Test is based on thickness 2.00mm.

DIN Test is based based on 1.5mm thick.


Semirigid Expanded PTFE Sheet

Item No.:ZD-GS1620

SynopsisSemirigid Expanded PTFE sheet is a new gasket material which our factory make the breakthrough in domestic. It is different from normal PTFE sheet and similar to expanded PTFE sheet.But in some sealing condition,the sealing effect is better than expanded PTFE sheet.

Main Specification:

PH

0-14

Temperature

-100~+200

Recovery

15%

Compressibility

60%

Creep

14%

Compressure

=<2.5

Tensile Strength

15MPa

Leakage Rate

<1/100cm3

Color

White

Density

1.5-1.8g/cm3

ASTM Test is based on thickness 2.00mm.

DIN Test is based based on 1.5mm thick.
